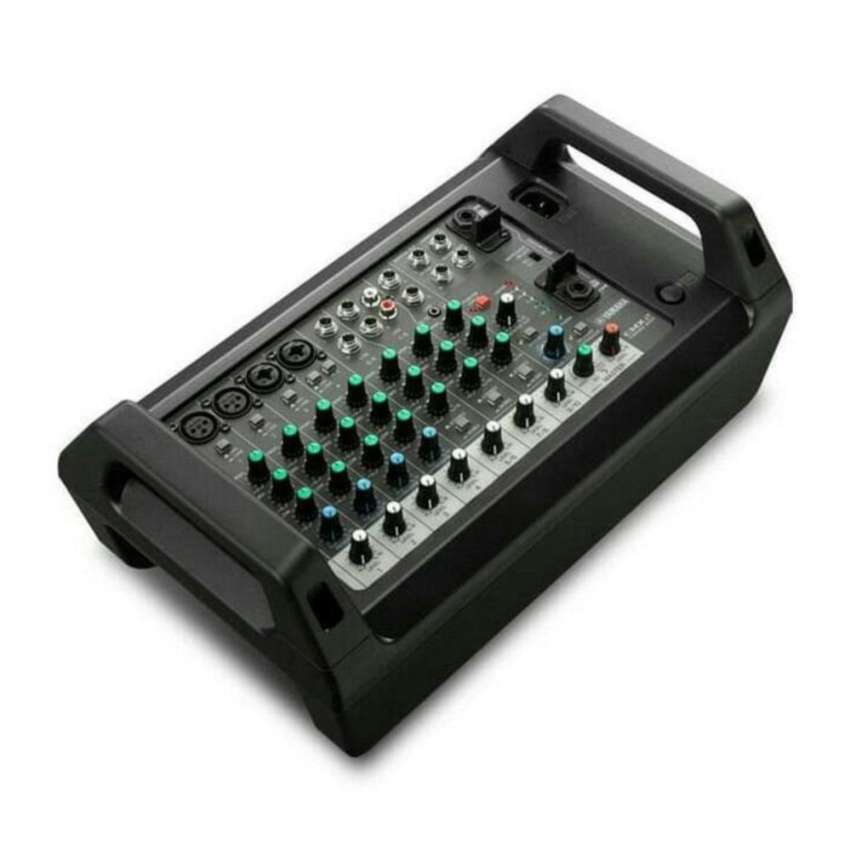

Power Mixer Yamaha EMX 2 12channel ORYGINAL | Image source: Lazada
Detail produk dari Power Mixer Yamaha EMX 2 12channel ORYGINAL
Phantom powerCH1, 2 : +30V
OutputsSPEAKERS [L, R],
MONITOR OUT [L,R], SUBWOOFER OUT
Control and others
FOOT SW : Effect Mute on/off
BusStereo: 1, Effect: 1
Input Channel Function
PAD26 dB (CH1-4)Hi-ZSupported (CH4)EQ HIGH8kHz +15dB / -15dBEQ MID2.5kHz +15dB / -15dBEQ LOW100Hz +15dB / -15dB
On-board processors
DSPSPX Algorithm Reverb 4 programs, MASTER EQ (SPEECH to MUSIC), Feedback suppressor
On-board amplifiers
Maximum output power @4ohms1kHz THD+N less than 10% (CEA2006) : 250 W + 250 W, 1kHz THD+N less than 1% : 110 W + 110 WMaximum output power @8ohms1kHz THD+N less than 10% (CEA2006) : 170 W + 170 W, 1kHz THD+N less than 1% : 110 W + 110 WLevel Meter6points (-20, -6, 0 , +3, +6, LIMITER)
General specifications
Frequency responseInput to SPEAKERS : +1 dB/-4 dB (40Hz to 20kHz), Input to MONITOR OUT : +0.5 dB/-1.5 dB (20Hz to 20kHz) , refer to the nominal output level @ 1 kHzTotal harmonic distortionInput to SPEAKERS : 0.2 % @ 13.8 W (40Hz to 20kHz), 0.4 % @ 23.2W (1kHz), Input to MONITOR OUT : 0.05 % @ +10 dBu (20Hz to 20kHz) 0.009 % @ +20 dBu (1kHz), (THD+N, Measured with 22 kHz LPF)
Hum & noise level
Equivalent input noise-115 dBuResidual output noiseInput to SPEAKERS : -68 dBu (40Hz to 20kHz, MASTER: min), Input to MONITOR OUT : -99 dBu (20Hz to 20kHz, MONITOR: min)Crosstalk-80 dB (1 kHz, Measured with 1 kHz band pass filter)
Protection circuit
Load protectionDC-faultAmplifier protectionOver heat protection, Over current protectionPower requirementsAC 100-240V, 50Hz/60HzPower consumption35W (Idle) / 90W (1/8 Power)
Dimensions
W375 mm (14.8")H147 mm (5.8")D220 mm (8.7")Net weight4.2 kg (9.3 lbs.)
Garansi resmi Yamaha
Spesifikasi Power Mixer Yamaha EMX 2 12channel ORYGINAL
| SKU | YA996ELAATKF7GANID-66714837 |
| Model | Power Mixer Yamaha EMX 2 12channel ORYGINAL |
| Tipe garansi | No Warranty |
