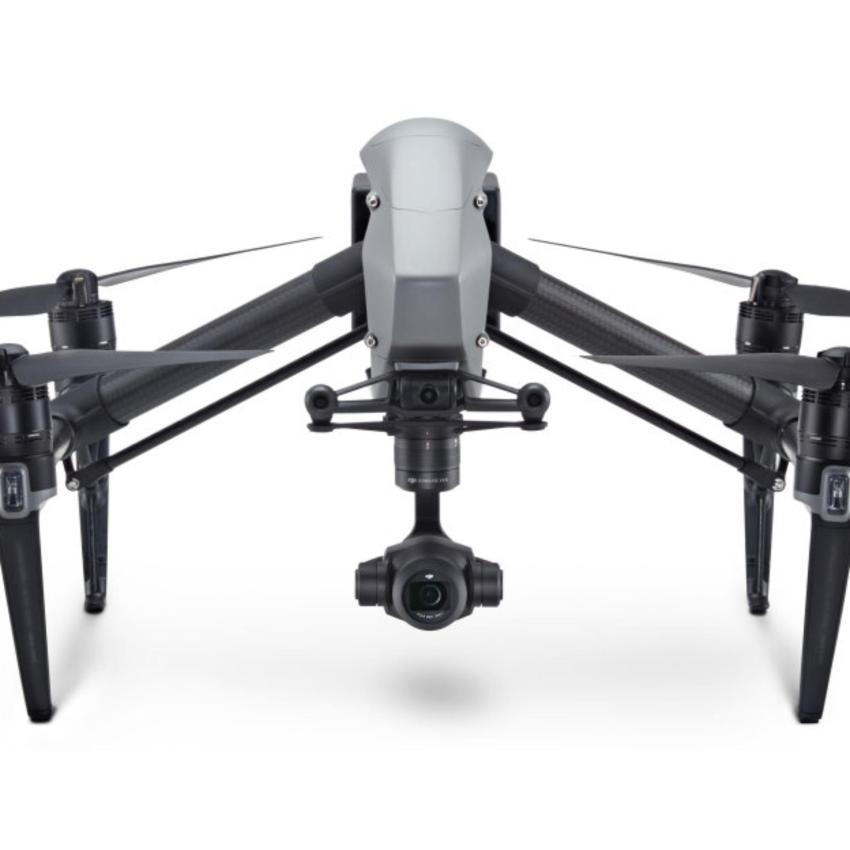

DJI INSPIRE 2 + DJI ZENMUSE X4S | Image source: Lazada
Detail produk dari DJI INSPIRE 2 + DJI ZENMUSE X4S
Specifications
Aircraft
| Model | T650 |
|---|---|
| Weight | 7.25 lbs (3290 g, including two batteries, without gimbal and camera) |
| Max Takeoff Weight | 8.82 lbs (4000 g) |
| GPS Hovering Accuracy | Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled) Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled) |
| Max Angular Velocity | Pitch: 300°/s Yaw: 150°/s |
| Max Tilt Angle | P-mode: 35° (Forward Vision System enabled: 25°) A-mode: 35° S-mode: 40° |
| Max Ascent Speed | P-mode/A-mode: 16.4 ft/s (5 m/s) S-mode: 19.7 ft/s (6 m/s) |
| Max Descent Speed | Vertical: 13.1 ft/s (4 m/s) Tilt: 13.1-29.5 ft/s (4-9 m/s) |
| Max Takeoff Sea Level | 1.55 mi (2500 m) 3.1 mi (5000 m with specially-designed propeller) |
| Max Wind Speed Resistance | 10 m/s |
| Max Flight Time | Approx. 27 min (with Zenmuse X4S) |
| Motor Model | DJI 3512 |
| Propeller Model | DJI 1550T |
| Indoor Hovering | Enabled by default |
| Operating Temperature | -4° to 104° F (-20° to 40° C) |
| Diagonal Distance(propeller excluded) | 23.8 inch (605 mm, Landing Mode) |
| Max Speed | 58 mph or 94 kph(Sport mode) |
Remote Controller
| Model | GL6D10A |
|---|---|
| Operating Frequency | 2.400-2.483 GHz 5.725-5.850 GHz |
| Max Transmitting Distance(unobstructed, free of interference) | 2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC) 5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC) |
| EIRP | 2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC) 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC) |
| Video Output Ports | USB, HDMI |
| Power Supply | Built-in battery |
| Charging | DJI charger |
| Dual User Capability | Host-and-Slave connection |
| Mobile Device Holder | Tablet or Smart Phone |
| Max Mobile Device Width | 170 mm |
| Output Power | 9 W (Without supplying power to smart device) |
| Operating Temperature | -4° to 104° F (-20° to 40° C) |
| Storage Temperature | Less than 3 months: -4° to 113° F (-20° to 45° C) More than 3 months: 72° to 82° F (22° to 28° C) |
| Charging Temperature | 32° to 104° F (0° to 40° C) |
| Battery | 6000mAh 2S LiPo |
| USB Supply Power | iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max) |
Battery (Standard)
| Name | Intelligent Flight Battery |
|---|---|
| Model | TB50 |
| Capacity | 4280 mAh |
| Voltage | 22.8 V |
| Battery Type | LiPo 6S |
| Energy | 97.58 Wh |
| Net Weight | 515 g |
| Charging Temperature | 41° to 104° F (5° to 40° C) |
| Operating Temperature | -4° to 104° F (-20° to 40° C) |
| Max Charging Power | 180 W |
| Storage Temperature | Less than 3 months: -4° to 113° F (-20° to 45° C) More than 3 months: 72° to 82° F (22° to 28° C) |
Downward Vision System
| Velocity Range | <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m) |
|---|---|
| Altitude Range | <32.8 feet (10 m) |
| Operating Range | <32.8 feet (10 m) |
| Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) |
| Ultrasonic Sensor Operating Range | 0.33-16.4 feet (10-500 cm) |
| Ultrasonic Sensor Operating Environment | Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance) |
Upward Infrared Sensor
| Obstacle Sensing Range | 0-16.4 feet (0-5 m) |
|---|---|
| FOV | ±5° |
| Operating Environment | Large-size non-reflective obstacles |
SPECS OF CAMERA DJI ZENMUSE X4S
| Name | Zenmuse X4S |
|---|---|
| Dimensions | 125×100×80 mm |
| Weight | 253 g |
Camera
| Sensor | CMOS, 1" Effective Pixels: 20 MP |
|---|---|
| Lens | F/2.8-11, 8.8mm (35 mm Equivalent: 24mm) |
| FOV | 84° |
| Photo Resolutions | 3:2, 5472×3648 4:3, 4864×3648 16:9, 5472×3078 |
| Video Resolutions | H.264 C4K: 4096×2160 23.976/24/25/29.97/47.95/50/59.94p @100Mbps 4K: 3840×2160 23.976/24/25/29.97/47.95/50/59.94p @100Mbps 2.7K: 2720×1530 23.976/24/25/29.97p @80Mbps 47.95/50/59.94p @100Mbps FHD: 1920×1080 23.976/24/25/29.97p @60Mbps 47.95/50/59.94p @80Mbps 119.88p @100Mbps H.265 C4K: 4096×2160 23.976/24/25/29.97p @100Mbps 4K: 3840×2160 23.976/24/25/29.97p @100Mbps 2.7K: 2720×1530 23.976/24/25/29.97p @65Mbps 47.95/50/59.94p @80Mbps FHD: 1920×1080 23.976/24/25/29.97p @50Mbps 47.95/50/59.94p @65Mbps 119.88p @100Mbps |
| Photo Formats | DNG, JPEG, DNG+JPEG |
| Video Formats | MOV, MP4 |
| Operation Modes | Capture, Record, Playback |
| Still Photography Modes | Single shot, Burst shooting: 3/5/7/10/14 frames, Auto Exposure Bracketing, 3/5 bracketed frames at 0.7EV bias, Interval |
| Exposure Mode | Auto, Manual, Shutter Priority, Aperture Priority |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Center-weighted metering, Spot metering (area option 12×8) |
| AE Lock | Supported |
| Shutter Speed | Mechanical Shutter: 8 – 1/2000s Electronic Shutter: 1/2000 – 1/8000s |
| White Balance | Auto, Sunny, Cloudy, Incandescent, Neon, Custom (2000K – 10000K) |
| ISO Range | 100 – 6400 (Video) 100 – 12800 (Stills) |
| Video Captions | Supported |
| Anti-Flicker | Auto, 50Hz, 60Hz |
| PAL/NTSC | Supported |
Spesifikasi DJI INSPIRE 2 + DJI ZENMUSE X4S
| SKU | DJ135ELAA7XK0TANID-19077746 |
| Model | DJI INSPIRE 2 + DJI ZENMUSE X4S |
| Warranty period | 1 Tahun |
| Tipe garansi | Garansi Resmi Distributor Lokal |
| Berat (kg) | 15 |
| Ukuran (L x W x H cm) | 27X19X27 |
