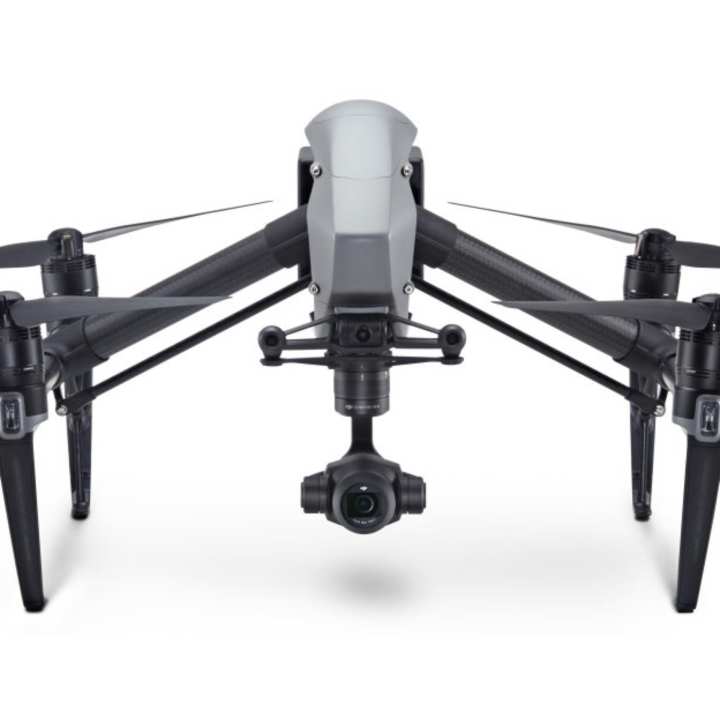

DJI INSPIRE 2 + DJI ZENMUSE X4S
Specifications
Aircraft
| Model | T650 |
|---|---|
| Weight | 7.25 lbs (3290 g, including two batteries, without gimbal and camera) |
| Max Takeoff Weight | 8.82 lbs (4000 g) |
| GPS Hovering Accuracy | Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled) Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled) |
| Max Angular Velocity | Pitch: 300°/s Yaw: 150°/s |
| Max Tilt Angle | P-mode: 35° (Forward Vision System enabled: 25°) A-mode: 35° S-mode: 40° |
| Max Ascent Speed | P-mode/A-mode: 16.4 ft/s (5 m/s) S-mode: 19.7 ft/s (6 m/s) |
| Max Descent Speed | Vertical: 13.1 ft/s (4 m/s) Tilt: 13.1-29.5 ft/s (4-9 m/s) |
| Max Takeoff Sea Level | 1.55 mi (2500 m) 3.1 mi (5000 m with specially-designed propeller) |
| Max Wind Speed Resistance | 10 m/s |
| Max Flight Time | Approx. 27 min (with Zenmuse X4S) |
| Motor Model | DJI 3512 |
| Propeller Model | DJI 1550T |
| Indoor Hovering | Enabled by default |
| Operating Temperature | -4° to 104° F (-20° to 40° C) |
| Diagonal Distance(propeller excluded) | 23.8 inch (605 mm, Landing Mode) |
| Max Speed | 58 mph or 94 kph(Sport mode) |
Remote Controller
| Model | GL6D10A |
|---|---|
| Operating Frequency | 2.400-2.483 GHz 5.725-5.850 GHz |
| Max Transmitting Distance(unobstructed, free of interference) | 2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC) 5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC) |
| EIRP | 2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC) 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC) |
| Video Output Ports | USB, HDMI |
| Power Supply | Built-in battery |
| Charging | DJI charger |
| Dual User Capability | Host-and-Slave connection |
| Mobile Device Holder | Tablet or Smart Phone |
| Max Mobile Device Width | 170 mm |
| Output Power | 9 W (Without supplying power to smart device) |
| Operating Temperature | -4° to 104° F (-20° to 40° C) |
| Storage Temperature | Less than 3 months: -4° to 113° F (-20° to 45° C) More than 3 months: 72° to 82° F (22° to 28° C) |
| Charging Temperature | 32° to 104° F (0° to 40° C) |
| Battery | 6000mAh 2S LiPo |
| USB Supply Power | iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max) |
Battery (Standard)
| Name | Intelligent Flight Battery |
|---|---|
| Model | TB50 |
| Capacity | 4280 mAh |
| Voltage | 22.8 V |
| Battery Type | LiPo 6S |
| Energy | 97.58 Wh |
| Net Weight | 515 g |
| Charging Temperature | 41° to 104° F (5° to 40° C) |
| Operating Temperature | -4° to 104° F (-20° to 40° C) |
| Max Charging Power | 180 W |
| Storage Temperature | Less than 3 months: -4° to 113° F (-20° to 45° C) More than 3 months: 72° to 82° F (22° to 28° C) |
Downward Vision System
| Velocity Range | <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m) |
|---|---|
| Altitude Range | <32.8 feet (10 m) |
| Operating Range | <32.8 feet (10 m) |
| Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) |
| Ultrasonic Sensor Operating Range | 0.33-16.4 feet (10-500 cm) |
| Ultrasonic Sensor Operating Environment | Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance) |
Upward Infrared Sensor
| Obstacle Sensing Range | 0-16.4 feet (0-5 m) |
|---|---|
| FOV | ±5° |
| Operating Environment | Large-size non-reflective obstacles |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SPECS OF CAMERA DJI ZENMUSE X4S
| Name | Zenmuse X4S |
|---|---|
| Dimensions | 125×100×80 mm |
| Weight | 253 g |
Camera
| Sensor | CMOS, 1" Effective Pixels: 20 MP |
|---|---|
| Lens | F/2.8-11, 8.8mm (35 mm Equivalent: 24mm) |
| FOV | 84° |
| Photo Resolutions | 3:2, 5472×3648 4:3, 4864×3648 16:9, 5472×3078 |
| Video Resolutions | H.264 C4K: 4096×2160 23.976/24/25/29.97/47.95/50/59.94p @100Mbps 4K: 3840×2160 23.976/24/25/29.97/47.95/50/59.94p @100Mbps 2.7K: 2720×1530 23.976/24/25/29.97p @80Mbps 47.95/50/59.94p @100Mbps FHD: 1920×1080 23.976/24/25/29.97p @60Mbps 47.95/50/59.94p @80Mbps 119.88p @100Mbps H.265 C4K: 4096×2160 23.976/24/25/29.97p @100Mbps 4K: 3840×2160 23.976/24/25/29.97p @100Mbps 2.7K: 2720×1530 23.976/24/25/29.97p @65Mbps 47.95/50/59.94p @80Mbps FHD: 1920×1080 23.976/24/25/29.97p @50Mbps 47.95/50/59.94p @65Mbps 119.88p @100Mbps |
| Photo Formats | DNG, JPEG, DNG+JPEG |
| Video Formats | MOV, MP4 |
| Operation Modes | Capture, Record, Playback |
| Still Photography Modes | Single shot, Burst shooting: 3/5/7/10/14 frames, Auto Exposure Bracketing, 3/5 bracketed frames at 0.7EV bias, Interval |
| Exposure Mode | Auto, Manual, Shutter Priority, Aperture Priority |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Center-weighted metering, Spot metering (area option 12×8) |
| AE Lock | Supported |
| Shutter Speed | Mechanical Shutter: 8 – 1/2000s Electronic Shutter: 1/2000 – 1/8000s |
| White Balance | Auto, Sunny, Cloudy, Incandescent, Neon, Custom (2000K – 10000K) |
| ISO Range | 100 – 6400 (Video) 100 – 12800 (Stills) |
| Video Captions | Supported |
| Anti-Flicker | Auto, 50Hz, 60Hz |
| PAL/NTSC | Supported |
- The Inspire 1 was a revelation. The first filmmaking drone in the world to integrate an HD video transmission system, 360° rotating gimbal and a 4K camera, as well as the simplicity of app control.
- The launches of the Zenmuse X5 and X5R cameras further cemented the Inspire as a critical tool for filmmakers around the globe.
- The Inspire 2 takes everything that was good about the Inspire 1 and improves it. An all-new image processing system records at up to 5.2K in CinemaDNG RAW, Apple ProRes and more. It goes from 0 to 50mph (80kph) in just 5 seconds and hits a maximum speed of 58mph (94kph) and has a max descent speed of 9m/s for unheard of speed and agility in an aircraft this size.
- A dual battery system prolongs the flight time to a maximum of 27 minutes (with an X4S),while self-heating technology allows it to fly even in low temperatures.
- FlightAutonomy has been revised and developed specifically for the Inspire 2,providing two directions of obstacle avoidance and sensor redundancy.
- Increased intelligence adds multiple intelligent flight modes, including Spotlight Pro, giving even single pilots the ability to create complex, dramatic shots.
- An upgraded video transmission system is now capable of dual signal frequency and dual channel, streaming video from an onboard FPV camera and the main camera simultaneously, for better pilot and camera operator collaboration.
Spesifikasi dari DJI INSPIRE 2 + DJI ZENMUSE X4S
- Merek DJI
- SKU DJ135ELAA7XK0TANID-19077746
- Jenis Garansi Garansi Resmi Distributor Lokal
- Model DJI INSPIRE 2 + DJI ZENMUSE X4S
- Masa Garansi 1 Tahun
Apa yang ada di dalam kotak
isi paket
1 unit Camera ZENMUSE X4S
1 unit drone
1 Remote control
2 Set propeller
1 Power cable
1 Usb cable
1 Micro sd 16 gb
1 Vision system calibration plate
2 Battert tb50
1 adapter charger
1 Charging hub
1 Carrying case
3 Gimbal dumper
1 propeller mounting plates
4 Battery insulation sticker
